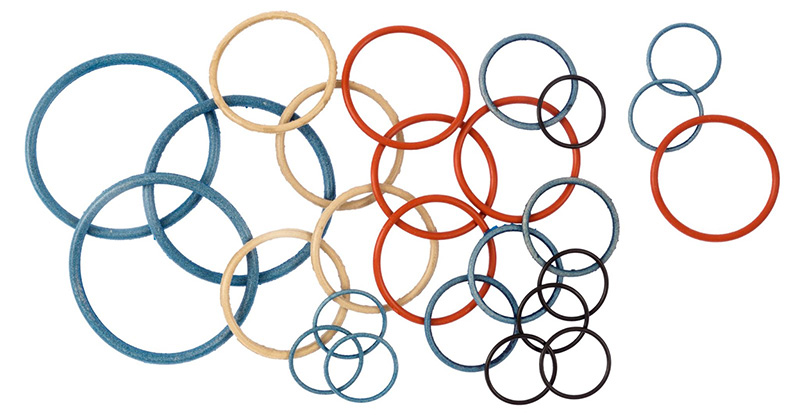

O-Rings Available from MAJR Products
MAJR’s round profile EMI / RFI shielding O-rings come in two material types: B - Silver Aluminum Silicone and D - Silver Aluminum Fluorosilicone.
Benefits of MAJR Products’ Shielded Gaskets
MAJR Products offers a variety of EMI gaskets and tapes, including EMI shielding tape, EMI knitted wire mesh gaskets, strip gaskets, Multicon gaskets, cut, and O-ring gaskets in many materials and configurations. Each offers unique solutions for the attenuation of electromagnetic interference and radio frequency waves.
Table 1 for 002 sized O-Rings
Dimensions | Part Numbers | ||
B | C | Material Type/Size Designation | Mil Number |
0.070 | 0.145 | B [007] | M83528/002B007 |
0.070 | 0.301 | B [011] | M83528/002B011 |
0.070 | 0.364 | B [012] | M83528/002B012 |
0.070 | 0.426 | B [013] | M83528/002B013 |
0.070 | 0.489 | B [014] | M83528/002B014 |
0.070 | 0.551 | B [015] | M83528/002B015 |
0.070 | 0.676 | B [017] | M83528/002B017 |
0.070 | 0.739 | B [018] | M83528/002B018 |
0.070 | 0.801 | B [019] | M83528/002B019 |
0.070 | 0.864 | B [020] | M83528/002B020 |
0.070 | 0.926 | B [021] | M83528/002B021 |
0.070 | 0.989 | B [022] | M83528/002B022 |
0.070 | 1.114 | B [024] | M83528/002B024 |
0.070 | 1.239 | B [026] | M83528/002B026 |
0.070 | 1.364 | B [028] | M83528/002B028 |
0.103 | 0.612 | B [114] | M83528/002B114 |
0.103 | 0.676 | B [115] | M83528/002B115 |
0.103 | 0.799 | B [117] | M83528/002B117 |
0.103 | 1.362 | B [126] | M83528/002B126 |
0.103 | 1.487 | B [128] | M83528/002B128 |
0.103 | 1.737 | B [132] | M83528/002B132 |
0.103 | 1.862 | B [134] | M83528/002B134 |
0.103 | 2.362 | B [142] | M83528/002B142 |
0.103 | 2.550 | B [145] | M83528/002B145 |
0.103 | 3.987 | B [155] | M83528/002B155 |
0.070 | 0.145 | D [007] | M83528/002D007 |
0.070 | 0.301 | D [011] | M83528/002D011 |
0.070 | 0.364 | D [012] | M83528/002D012 |
0.070 | 0.426 | D [013] | M83528/002D013 |
0.070 | 0.489 | D [014] | M83528/002D014 |
0.070 | 0.551 | D [015] | M83528/002D015 |
0.070 | 0.676 | D [017] | M83528/002D017 |
0.070 | 0.739 | D [018] | M83528/002D018 |
0.070 | 0.801 | D [019] | M83528/002D019 |
0.070 | 0.864 | D [020] | M83528/002D020 |
0.070 | 0.926 | D [021] | M83528/002D021 |
0.070 | 0.989 | D [022] | M83528/002D022 |
0.070 | 1.114 | D [024] | M83528/002D024 |
0.070 | 1.239 | D [026] | M83528/002D026 |
0.070 | 1.364 | D [028] | M83528/002D028 |
0.130 | 0.612 | D [114] | M83528/002D114 |
0.130 | 0.676 | D [115] | M83528/002D115 |
0.130 | 0.799 | D [117] | M83528/002D117 |
0.130 | 1.362 | D [126] | M83528/002D126 |
0.130 | 1.487 | D [128] | M83528/002D128 |
0.130 | 1.737 | D [132] | M83528/002D132 |
0.130 | 1.862 | D [134] | M83528/002D134 |
0.130 | 2.362 | D [142] | M83528/002D142 |
0.130 | 2.550 | D [145] | M83528/002D145 |
0.130 | 3.987 | D [155] | M83528/002D155 |
Table 2 for 005 sized O-Rings
Dimensions | Part Numbers | ||
B | C | Material Type/Size Designation | Mil Number |
0.030 | 0.442 | B [001] | M83528/005B001 |
0.030 | 0.557 | B [002] | M83528/005B002 |
0.030 | 0.692 | B [003] | M83528/005B003 |
0.068 | 1.182 | B [004] | M83528/005B004 |
0.068 | 3.165 | B [005] | M83528/005B005 |
0.070 | 0.495 | B [006] | M83528/005B006 |
0.070 | 0.635 | B [007] | M83528/005B007 |
0.070 | 0.667 | B [008] | M83528/005B008 |
0.070 | 0.860 | B [009] | M83528/005B009 |
0.070 | 1.230 | B [010] | M83528/005B010 |
0.103 | 1.040 | B [011] | M83528/005B011 |
0.103 | 1.612 | B [012] | M83528/005B012 |
0.068 | 1.182 | B [013] | M83528/005B013 |
0.068 | 3.165 | B [014] | M83528/005B014 |
0.070 | 0.495 | B [015] | M83528/005B015 |
0.070 | 0.610 | B [016] | M83528/005B016 |
0.070 | 0.635 | B [017] | M83528/005B017 |
0.070 | 0.667 | B [018] | M83528/005B018 |
0.070 | 0.860 | B [019] | M83528/005B019 |
0.070 | 1.230 | B [020] | M83528/005B020 |
0.103 | 1.040 | B [021] | M83528/005B021 |
0.103 | 1.612 | B [022] | M83528/005B022 |
0.103 | 1.790 | B [023] | M83528/005B023 |
0.030 | 0.442 | D [001] | M83528/005D001 |
0.030 | 0.557 | D [002] | M83528/005D002 |
0.030 | 0.692 | D [003] | M83528/005D003 |
0.068 | 1.182 | D [004] | M83528/005D004 |
0.068 | 3.165 | D [005] | M83528/005D005 |
0.070 | 0.495 | D [006] | M83528/005D006 |
0.070 | 0.635 | D [007] | M83528/005D007 |
0.070 | 0.667 | D [008] | M83528/005D008 |
0.070 | 0.860 | D [009] | M83528/005D009 |
0.070 | 1.230 | D [010] | M83528/005D010 |
0.103 | 1.040 | D [011] | M83528/005D011 |
0.103 | 1.612 | D [012] | M83528/005D012 |
0.068 | 1.182 | D [013] | M83528/005D013 |
0.068 | 3.165 | D [014] | M83528/005D014 |
0.070 | 0.495 | D [015] | M83528/005D015 |
0.070 | 0.610 | D [016] | M83528/005D016 |
0.070 | 0.635 | D [017] | M83528/005D017 |
0.070 | 0.667 | D [018] | M83528/005D018 |
0.070 | 0.860 | D [019] | M83528/005D019 |
0.070 | 1.230 | D [020] | M83528/005D020 |
0.103 | 1.040 | D [021] | M83528/005D021 |
0.103 | 1.612 | D [022] | M83528/005D022 |
0.103 | 1.790 | D [023] | M83528/005D023 |
