EMI Shielding Tape With Adhesive

Series No. 2800

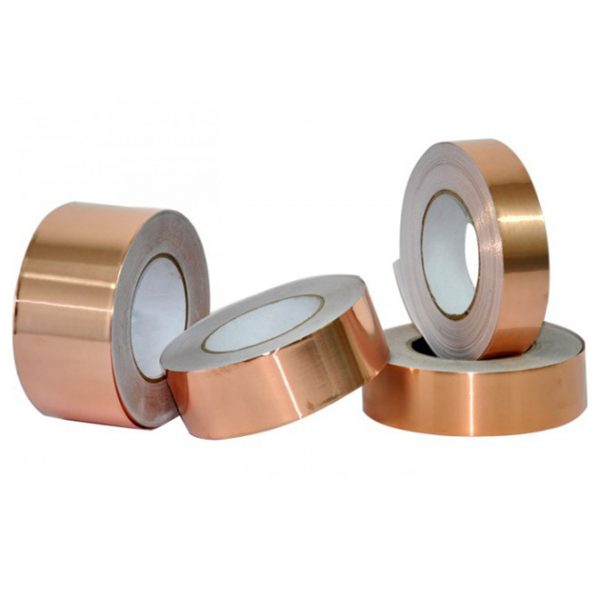

MAJR Products’ EMI shielding tape, also known as copper tape or foil tape, offers an economical EMI shielding solution for a variety of commercial uses. The tapes are available in copper or aluminum backed with conductive pressure-sensitive adhesives. Copper tape meets the requirements of MIL-T-47012 for corrosion resistance. Typical properties are shown in Table 1.

Copper tape is available with a non-conductive adhesive for applications requiring surface conductivity only. Both standard length rolls and die-cut custom shapes can be ordered. Other types of shielding tape are available upon request.

Overview

MAJR’s copper foil tape, offers an economical EMI shielding solution for a variety of commercial uses. The tapes are available in copper backed with conductive pressure-sensitive adhesives. Copper tape meets the requirements of MIL-T-47012 for corrosion resistance.

Copper tape can be provided as with a non-conductive adhesive as an option for applications requiring surface conductivity only. Both standard length rolls and die-cut custom shapes are available. Other types of shielding tape are available upon request.

Custom Product

Technical Information

Properties — Table 1

Copper 2 mil Copper Foil
with Conductive Acrylic Adhesive
Silver 1.8 mil Aluminum Foil
with Conductive Acrylic Adhesive
Silver 5.0 mil Conductive Fabric
with Conductive Adhesive
Color Copper Silver Silver
Tempurature
Resistance
155 degress C” -40 C to +110 C
Resistivity
through Adhesive
10 milliohms/square inch

40 milliohms/

square inch

50 milliohms/square inch
Elongation
at Break
4%

5%

Backing .0014” (1oz) Copper Foil

.0018” Aluminum Foil

0.003” conductive fabric
Adhesive Conductive Acrylic Conductive Acrylic
Inter Liner Polyethelene Coated Paper Line
Thickness .0035” +/-.0005” .0036” +/-10% .005” +/- 10%
Adhesive (thickness) .002”
Peel Strength 35 oz./inch of width 35 oz./inch of width 51 oz./inch of width
Breaking Strength 25 lbs./inch of width 15 lbs./inch of width
RFI attenuation 90 – 100 dB from 20 MHz to 10 GHz
Tape Dimensions
(Max)
Width 1000mm, Length 100 M



Product Data Sheet

Applications

EMI radiation measurement trouble-shooting, using tape to shield ventilation slots or seam gaps.

Provide electrical continuity in seams of EMI-shielding rooms and electronic enclosures.

Supply electrical contact to surfaces that can’t be soldered, such as conductive plastic or aluminum.

Provide EMI shielding for cables when tape is wrapped around the cable. (An overlap is recommended.)

Provide ESD shielding.

Provide corrosion-resistant ground contact points.
