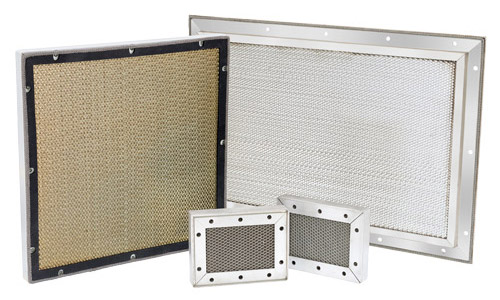

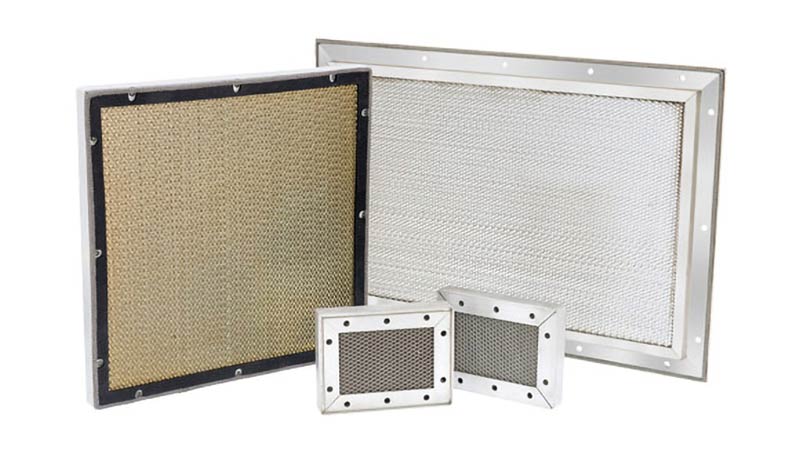

What is a Honeycomb Waveguide Panel

A Honeycomb Waveguide Panel is similar to an air filtration panel but with a honeycomb media allowing for air flow in an EMI/RFI shielded environment. This honeycomb media creates a “waveguide” effect allowing for the attenuation of electromagnetic energy.

How To Determine The Best Waveguide For Your HVAC Project

Considerations for your waveguide panels should include the following:

  • Required shielding levels (ex: 60 dB shielding at 10 GHz)
  • Magnetic field requirements
  • Overall and opening dimensional measurements

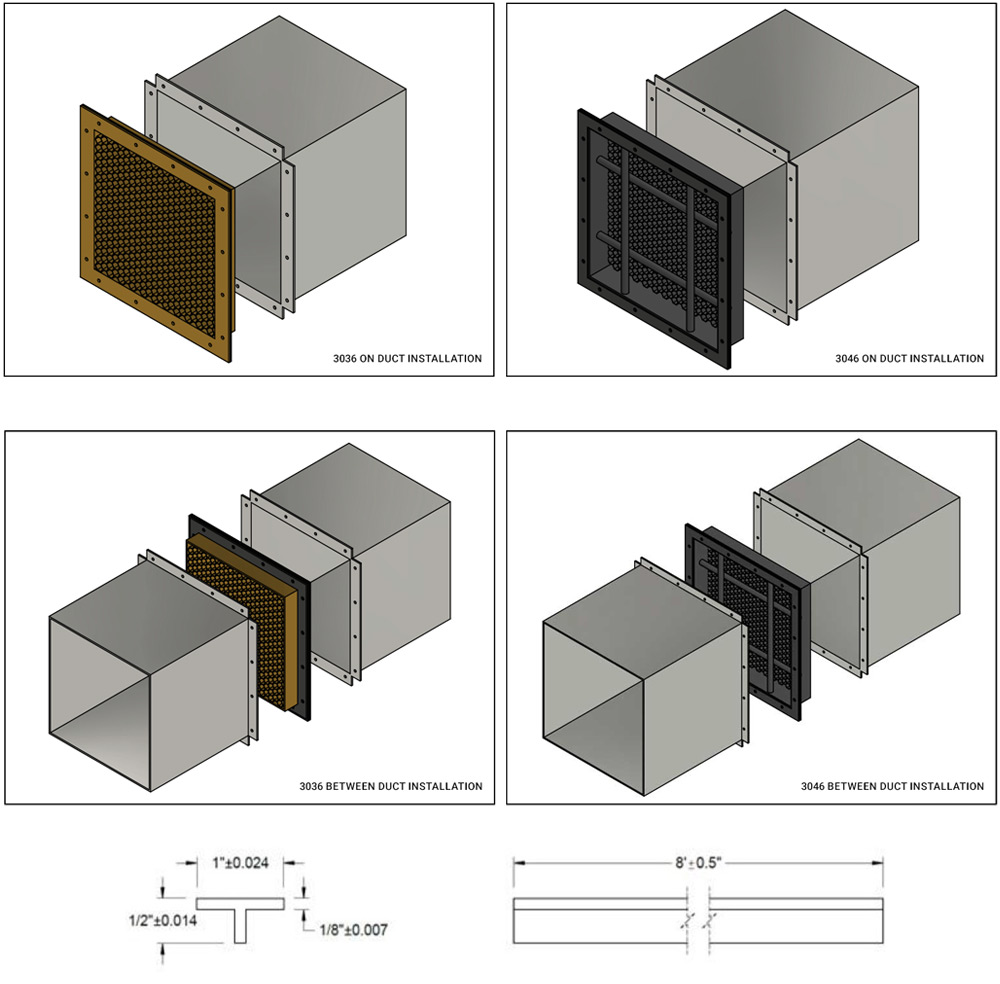

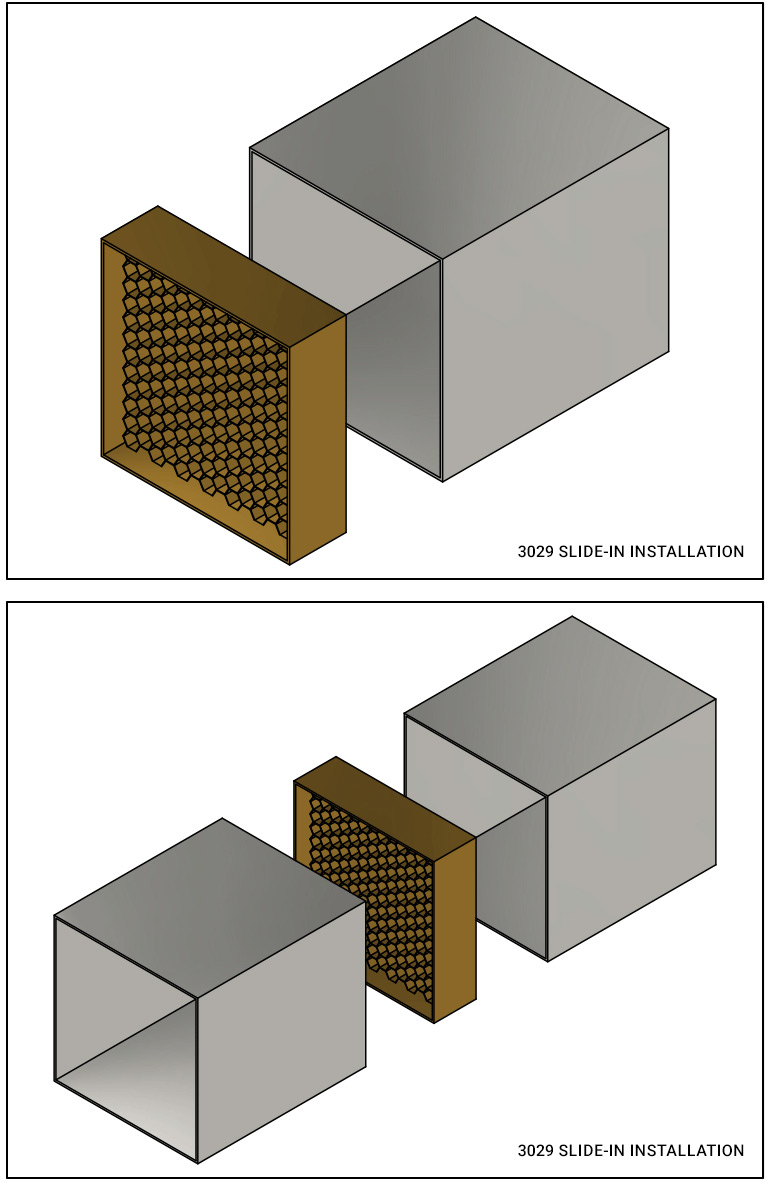

  • Mounting Method (ex: Mount into duct, surface mounting, Captive fasteners, etc.)
  • Airflow requirements

Product Features

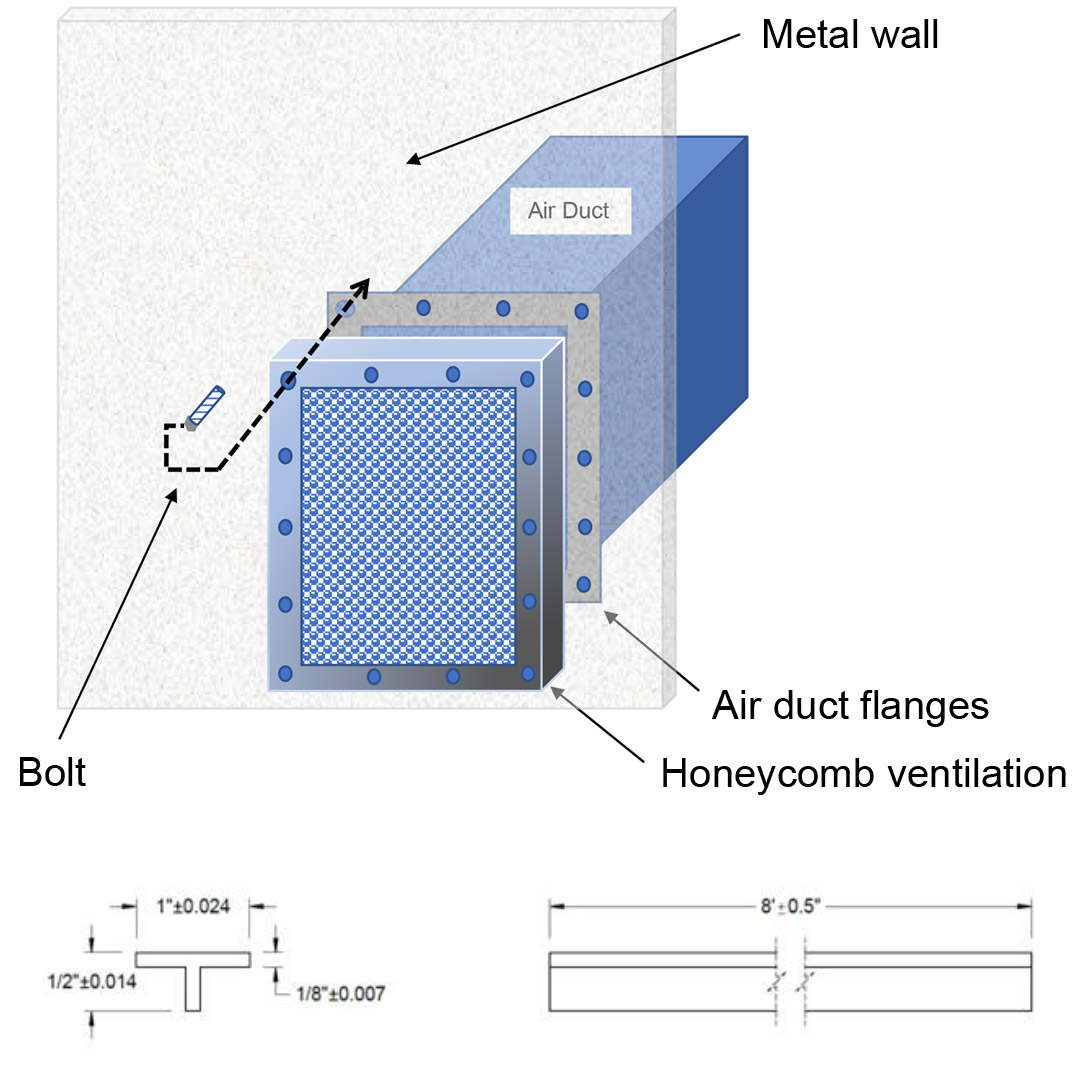

Ease of Installation
Waveguide vents are supplied with an installed EMI gasket and mounting holes ready for installation.

Painted Units
Vents mounted on the outside of the cabinet can be supplied with exposed surfaces painted to meet the Military Standard color of the mounting surface.

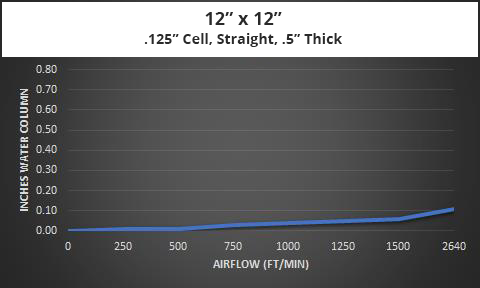

Optimum Shielding and Airflow
Installation of the honeycomb — with its 4:1 opening to depth ratio — provides the waveguide below cut-off effect required to attenuate EMI/RFI interference while only slightly impeding airflow.

Standard & Custom Configurations
A broad selection of sizes provides options in meeting design objectives. MAJR Products also provides custom configurations for specialty installations designed to meet specific shielding, airflow, and mounting requirements.

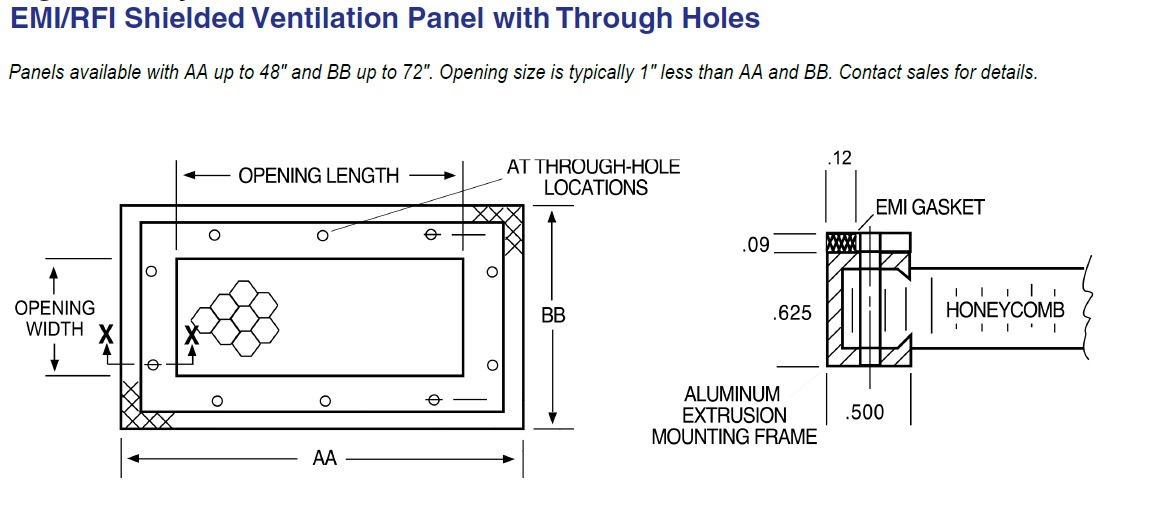

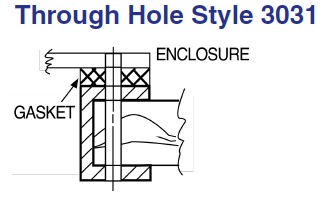

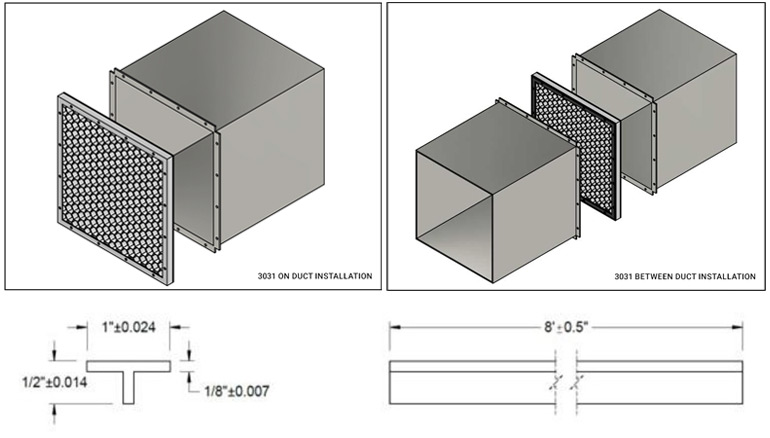

Figure 1 - Style 3031 Honeycomb Waveguide Panel with Through Holes

EMI-Gaskets-ventilation_panels

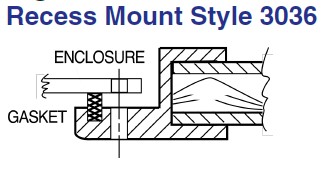

air filtration panels extrusion diagram

Table 1

Part Number OPENING (inches) FRAME DIMENSIONS (inches)
Width Length AA BB A B C D E F G H J
3031-Y0303-XX 3 3 4 4 3.50 3.50 1.75 1.75 4
3031-Y0305-XX 3 5 6 4 5.50 3.50 1 1.75 1 3.50 6
3031-Y0311-XX 3 11 12 4 11.50 3.50 1.25 1.75 3 3 10
3031-Y0404-XX 4 4 5 5 4.50 4.50 .750 2.25 1 3 6
3031-Y0409-XX 4 9 10 5 9.50 4.50 1.25 2.25 2 3.50 8
3031-Y0505-XX 5 5 6 6 5.50 5.50 1 1 1 3.50 1 3.50 8
3031-Y0511-XX 5 11 12 6 11.50 5.50 1.25 1 3 3 1 3.50 12
3031-Y0606-XX 6 6 7 7 6.50 6.50 1.50 1.50 1 3.50 1 3.50 8
3031-Y0609-XX 6 9 10 7 9.50 6.50 1.25 1.50 2 3.50 1 3.50 10
3031-Y0714-XX 7 14 15 8 14.50 7.50 .750 .750 4 3.25 2 3 16
3031-Y0909-XX 9 9 10 10 9.50 9.50 1.25 1.25 2 3.50 2 3.50 12
3031-Y1111-XX 11 11 12 12 11.50 11.50 1.25 1.25 3 3 3 3 16
3031-Y1414-XX 14 14 15 15 14.50 14.50 1.25 1.25 4 3 4 3 20
3031-Y1818-XX 18 18 19 19 18.50 18.50 1.75 1.75 5 3 5 3 24

Part Selection Guide

Surface and Duct Mount for Electric and Planewave Field Requirements

Mounting Style Mounting Configuration Series Material Selection Honeycomb Style Plating Gasket Configuration
Surface mount style Replace “Y” with 2 for Surface Mount Style Panel with single EMI gasket replace XX with 42 for aluminum or 44 for steel 0.5” thick honeycomb tin plating installed EMI gasket, mounted on 1 side of panel.
Duct mount style Replace “Y” with 3 for Duct Mount Style Panel with double EMI gasket replace XX with 42 for aluminum or 44 for steel 0.5” thick honeycomb tin plating installed EMI gaskets, mounted on both sides of panel, double mesh.

Surface and Duct Mount for Magnetic and 80+ dB Requirements

Mounting Style Mounting Configuration Series Material Selection Honeycomb Style Plating Gasket Configuration
Surface mount style Replace “Y” with 4 for Surface Mount Style Panel with single EMI gasket Only available in steel, replace XX with 44 1.0” thick steel honeycomb tin plating installed EMI gasket, mounted on 1 side of panel.
Duct mount style Replace “Y” with 5 for Duct Mount Style Panel with double EMI gasket Only available in steel, replace XX with 44 1.0” thick steel honeycomb tin plating installed EMI gaskets, mounted on both sides of panel, double mesh.

Request a Quote for Your Project
