Conductive Rubber – What It Is and Where It’s Used

conductive rubber or also known as conductive elastomer and conductive silicone

CONDUCTIVE RUBBER

What It Is and Where It’s Used

A MAJR Products Corp. Article by Mike Oliver







What is Conductive Rubber?

Definition: Conductive Rubber is a generic term referring to any rubberized material with conductive properties which reduce or eliminate the EMI/RFI (electromagnetic interference and radio frequency interference) “noise” that is often associated with electronics.

While there are a handful of materials that might be considered Conductive Rubber, this article will be focusing on the three common material types. Multicon (oriented wire in either sponge or solid silicone) Conductive Silicone (metallized filled silicones), and Radthin (wire screen imbedded into silicone). Each material is unique in its construction as well as its performance. Please see product description below for more detail.

Multicon Material:



Multicon material is one of the most prevalently used forms of conductive rubber today. It’s a combination of silicone and conductive wire paths which provides a superior environmental seal while providing EMI/RFI shielding to frequencies up to 6 GHz.

Multicon is offered in either solid or sponge silicone with either monel or aluminum wires for conductivity. The conductive wires are dispersed throughout the width of the material to provide great protection against EMI/RFI contamination. It’s constructed in such a way that when pressure is applied to the gasket, hundreds of sharp wire ends become exposed making electrical contact with mounting surfaces.

Multicon can be provided in a wide range of thicknesses and widths to meet the needs of a specific application, or the material can be die-cut to meet various configurations.



Conductive Elastomer:

Another widely popular form of Conductive Rubber is Conductive Elastomer. Like Multicon, Conductive Elastomer can be die-cut to form a flat gasket but one of the large differences from other materials is that Conductive Elastomer can also be provided in a variety of different extruded profiles. Common profile configurations of Conductive Elastomers are: “D”, Round, “P”, Square, and Rectangular; these profiles can be extruded as a solid cross section or hollow depending on the compression required and height of the open aperture to be shielded. See Figure #1

MIL-DTL-83528  and Commercial Conductive Metallized Filled Silicone Elastomers:

  • Sheets
  • Rectangular Profiles
  • Standard “D” Shapes
  • Standard Rounds
  • Custom Configurations
Military Grade / Standard Silicone
Military Grade / Fluorosilicone
Military Grade / EPDM
Military Grade / Fluoroelastomer Co-Polymer
Military Grade / Combination: Conductive / Non-conductive
Commercial Grade / Standard Silicone
Commercial Grade / Fluorosilicone

conductive rubber or also known as conductive elastomer and conductive siliconeIn Conductive Elastomer the base rubber is usually comprised of compounds such as silicone, fluorosilicone, or EPDM (ethylene propylene diene monomer).  The use of a specific rubber is based upon the properties unique to each and determined by the intended environment and application.  For example, silicone is used for general weather sealing and high temperatures to 400 deg. F.  Fluorosilicone is used for applications where exposure to jet fuel, gasoline, and alcohols are present. EPDM is used for applications where exposure to coolants, steam, phosphate ester, or where supertropical Bleach (STB) is used.

After choosing a specific rubber suited for the intended environment, a conductive filler must be determined. Some of the most common conductive metal fillers used are silver aluminum, silver glass, silver copper, and nickel graphite.

Determining the right filler is dependent on the level of shielding needed for a specific application, the more conductive the filler the higher the level of shielding achieved. Once the parameters have been determined, the table below can be used to establish which Conductive Elastomer is right for the application. If you’re unsure, feel free to contact us at emi@majr.com

Conductive Elastomer Material Chart
Material Designation Number 52 61 62 63 64 65 66 67
Elastomer —— Silicone Silicone Silicone Silicone Fluoro-silicone Silicone Silicone Silicone
Data Sheets Data Sheet Link Data Sheet Link Data Sheet Link Data Sheet Link
MIL-DTL-83528 Type —— —— M A B D L E ——
Material Description —— Ni/Gr Ag/Glass Ag/Cu Ag/Al Ag/Al Ag/Ni Ag Carbon
Volume resistivity Ohm-cm 0.1 0.006 0.004 0.008 0.012 0.005 0.002 7
Hardness Shore A 30-70 65 65 65 70 75 65 70
Operating Temp. Deg. C. Min. -55 -55 -55 -55 -55 -55 -55 -55
Deg. C. Max. 150 160 125 160 160 125 160 200
Conductive Elastomer Material Chart (continued)
Material Designation Number 68 69 71 74 75 76 78 79
Elastomer —— Silicone Fluoro-silicone Silicone Fluoro-silicone Fluoro-silicone Silicone Silicone Silicone
Data Sheets Data Sheet Link
MIL-DTL-83528 Type —— K F —— C —— I H G
Material Description —— Ag/Cu Ag Ni/Al Ag/Cu Ni/Gr Ag Ag Ag/Cu
Volume resistivity Ohm-cm 0.005 0.002 0.08 0.01 0.1 0.1 0.005 0.007
Hardness Shore A 80 75 65 75 65 45 80 80
Operating Temp. Deg. C. Min. -45 -55 -60 -45 -55 -55 -55 -55
Deg. C. Max. 125 160 200 125 150 160 160 125


Radthin:
radthin conductive rubber or also known as conductive elastomer and conductive siliconeWhile not as popular as either the Multicon or Conductive Elastomer materials, the Radthin gasket material can be a valuable asset when an ultra thin gasket that can withstand a wide-range of temperatures is needed. Often seen as a common gasket for connectors it can also be die-cut into custom shapes for other unique applications.

Radthin is comprised of a 24 mesh aluminum alloy wire cloth impregnated with 50 durometer neoprene or silicone rubber compound. The total thickness of either the silicone or neoprene Rathin is either 0.016 or 0.020 in. The   temperature range of the neoprene Rathin gasket is -35 deg. F to 225 deg. F, the silicone Radthin is -65 deg. F to +500 deg. F.  This makes it ideal in certain settings. See Figure #3

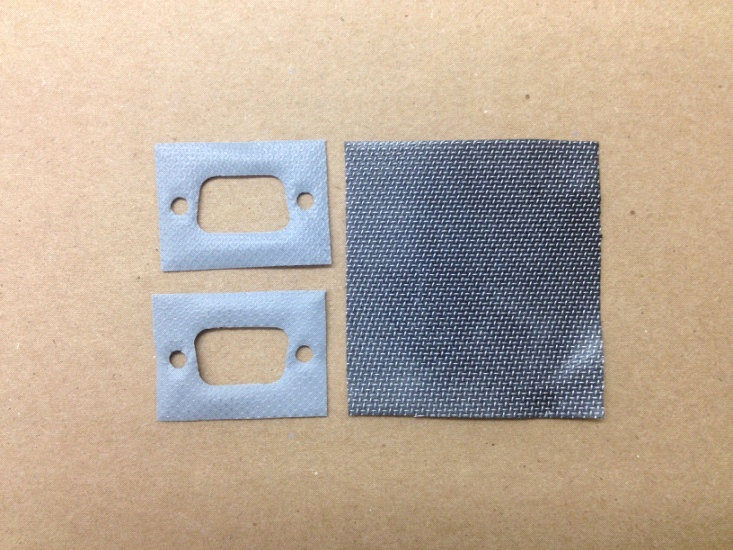

Figure #3 Radthin material – 24 mesh aluminum alloy wire cloth impregnated with 50 durometer neoprene or silicone rubber compound


Considerations with material choice:

When working with Conductive Rubber it’s important to remember that galvanic compatibility will also have an effect on which wire type or filler should be used. Galvanic compatibility is the corrosion potential between the conductive material and the metal interface or mating surface.

In some cases, one side of the material may be exposed to a different metal than the other; in this case, a conductive wire type or filler choice needs to be made where the difference in voltage potential between the dissimilar metals are as small as possible.  See figure #4 below.

Figure #4 Galvanic compatibility chart derived from MIL-STD-1250

Anodic
Most susceptible to corrosion
Cathodic
Least susceptible to corrosion
Magnesium
Zinc
Aluminum
Cadmium
Tin
Iron, Steel
Chromium
Brass
Copper, Bronze
Nickel, Monel
Stainless Steel
Zinc 0.50
Aluminim 0.85 0.35
Cadmium 0.80 0.30 0.05
Tin 1.10 0.60 0.25 0.30
Iron, Steel 0.90 0.40 0.05 0.10 0.20
Chromium 1.15 0.65 0.30 0.35 0.05 0.25
Brass 1.30 0.80 0.45 0.50 0.20 0.40 0.15
Copper, Bronze 1.40 0.90 0.55 0.60 0.30 0.50 0.25 0.10
Nickel, Monel 1.45 0.95 0.60 0.65 0.35 0.55 0.30 0.15 0.05
Stainless Steel 1.40 0.90 0.55 0.60 0.30 0.50 0.25 0.10 0.02 0.05
Silver 1.60 1.10 0.75 0.80 0.50 0.70 0.45 0.30 0.20 0.15 0.20



  1. RED – Metals subjected to harsh, marine environments such as salt spray or salt water. The potential difference is to be equal or less than 0.15V.
  2. GREEN – Metals subjected to normal environments, without temperature or humidity control such as warehouse storage. The potential difference is to be less than 0.45V.
  3. BLUE – Metals subjected to controlled environments with temperature / humidity control. The potential difference is to be equal or less than 0.95V.



Where is Conductive Rubber used?

Used in industries including but not limited to Telecom, Military, Computing and Medical devices, Conductive Rubber gaskets are used in applications where there needs to be an environmental seal and good to excellent shielding effectiveness. As an example, but not limited to, electronic enclosures with removable covers (Fig. #5), military shelter doors / access panels (Fig. #6), Electronic displays for computing and handheld devices where conductive EMI/RFI windows need to be environmentally sealed and grounded.(Fig. #7).

 conductive rubber or also known as conductive elastomer and conductive silicone

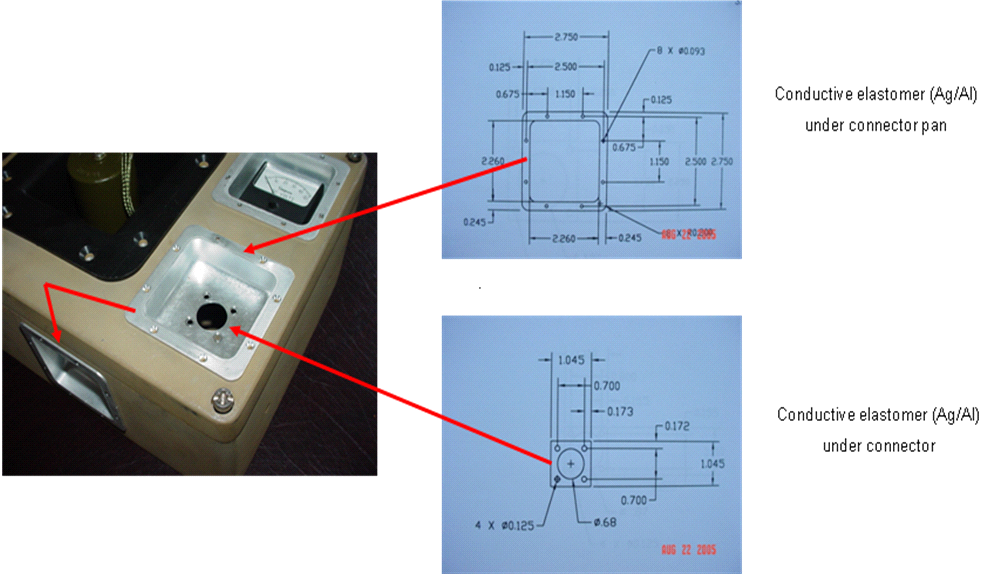

Figure #5 An electronic enclosure with a removable cover (click image to enlarge)

 conductive rubber or also known as conductive elastomer and conductive silicone

Figure #6 Military shelter utilizing conductive rubber EMI/RFI gasketing on the perimeter of the door.

 conductive rubber or also known as conductive elastomer and conductive silicone

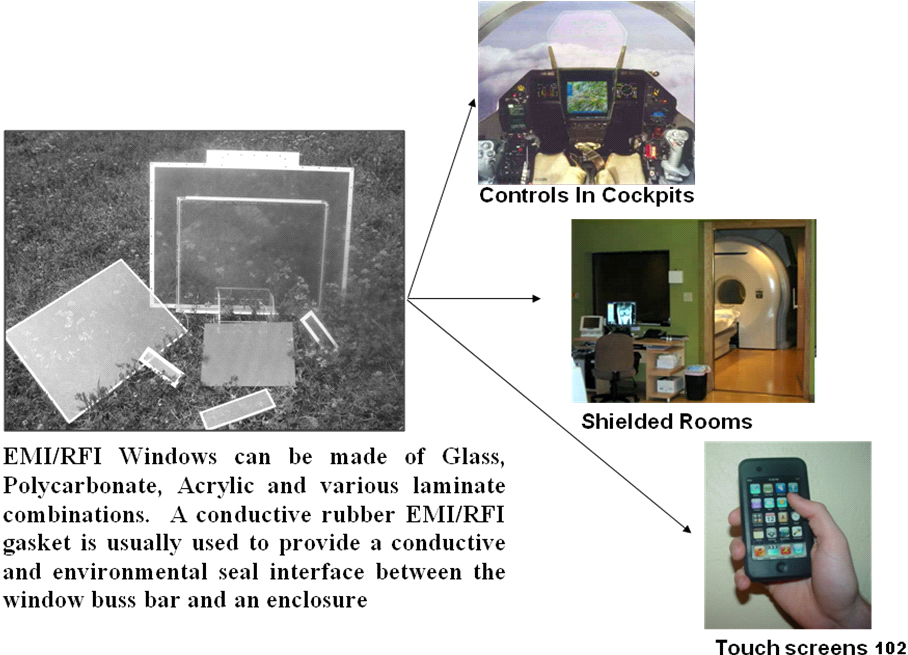

Figure #7 Conductive EMI/RFI windows to be environmentally sealed and grounded to an electronic enclosure. (click image to enlarge)



Conductive Rubber in any form is an important part of military and commercial electronic products. It enables these devices to meet radiated emissions and environmental requirements for use in many demanding applications throughout the world.

For more information on all Conductive Rubber materials and many other shielding products please visit www.majr.com
