Slim Line Ventilation Panels
MAJR’s Slim Line air ventilation panels offer a slim profile that is ideal for accommodating critical space limitations at air intake and exhaust aperture locations. The frame features an installed wire mesh gasket for EMI shielding at the mounting interface. MAJR offers a variety of standard Slim Line panel product sizes to choose from as well as a custom designed option for more unique requirements.
Standard Products
Slim Line air ventilation panels provide high dB attenuation at 1 MHz through 10 GHz with an ultra light construction made from a tightly woven wire mesh media that is captured in a slim extruded aluminum frame.

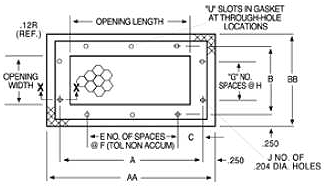

Table 1 – Style 3038 Slim Line Ventilation Panels
| Part Number |
OPENING (inches) | FRAME DIMENSIONS (inches) | |||||||||||
| Width | Length | AA | BB | A | B | C | D | E | F | G | H | J | |
| 3038-30303-XX | 3.00 | 3.00 | 4.25 | 4.25 | 3.50 | 3.50 | 1.75 | 1.75 | — | — | — | — | 4 |
| 3038-30305-XX | 3.00 | 5.00 | 6.25 | 4.25 | 5.50 | 3.50 | 1.00 | 1.75 | 1 | 3.50 | — | — | 6 |
| 3038-30311-XX | 3.00 | 11.00 | 12.25 | 4.25 | 11.50 | 3.50 | 1.25 | 1.75 | 3 | 3.00 | — | — | 10 |
| 3038-30404-XX | 4.00 | 4.00 | 5.25 | 5.25 | 4.50 | 4.50 | .750 | 2.25 | 1 | 3.00 | — | — | 6 |
| 3038-30409-XX | 4.00 | 9.00 | 10.25 | 5.25 | 9.50 | 4.50 | 1.25 | 2.25 | 2 | 3.50 | — | — | 8 |
| 3038-30505-XX | 5.00 | 5.00 | 6.25 | 6.25 | 5.50 | 5.50 | 1.00 | 1.00 | 1 | 3.50 | 1 | 3.50 | 8 |
| 3038-30511-XX | 5.00 | 11.00 | 12.25 | 6.25 | 11.50 | 5.50 | 1.25 | 1.00 | 3 | 3.00 | 1 | 3.50 | 12 |
| 3038-30606-XX | 6.00 | 6.00 | 7.25 | 7.25 | 6.50 | 6.50 | 1.50 | 1.50 | 1 | 3.50 | 1 | 3.50 | 8 |
| 3038-30609-XX | 6.00 | 9.00 | 10.25 | 7.25 | 9.50 | 6.50 | 1.25 | 1.50 | 2 | 3.50 | 1 | 3.50 | 10 |
| 3038-30714-XX | 7.00 | 14.00 | 15.25 | 8.25 | 14.50 | 7.50 | 1.50 | 1.50 | 3 | 3.50 | 1 | 3.50 | 16 |
| 3038-30909-XX | 9.00 | 9.00 | 10.25 | 10.25 | 9.50 | 9.50 | 1.25 | 1.25 | 2 | 3.50 | 2 | 3.50 | 12 |
| 3038-31111-XX | 11.00 | 11.00 | 12.25 | 12.25 | 11.50 | 11.50 | 1.25 | 1.25 | 3 | 3.00 | 3 | 3.00 | 16 |
| 3038-31414-XX | 14.00 | 14.00 | 15.25 | 15.25 | 14.50 | 14.50 | 1.25 | 1.25 | 4 | 3.00 | 4 | 3.00 | 20 |
| 3038-31818-XX | 18.00 | 18.00 | 19.25 | 19.25 | 18.50 | 18.50 | 1.75 | 1.75 | 5 | 3.00 | 5 | 3.00 | 24 |
Replace -xx with the following: -57 (Chromate finish) or -90 (RoHS compliant)
Custom Product
Technical Info
Shielding Effectiveness vs Frequency — Table 4
Shielding Effectiveness dB
| Field | Aluminum – Finish Material Code -57 (chromate) -90 (RoHS) Frequency |
||||
| 1 MHz |
100 MHz |
500 MHz |
1 GHz |
10 GHz |
|
| E | 90 | 80 | 70 | — | — |
| PW | — | — | — | 60 | 50 |
The data in Table 4 shows shielding characteristics for standard MAJR shielded vents. Note that the data indicated is based on a unit whose opening was 12.00 x 12.00 (305 x 305 mm) and tested under laboratory conditions per MIL-STD 285.
