Fingerstock Snap-on Mounting

Series No. 5220

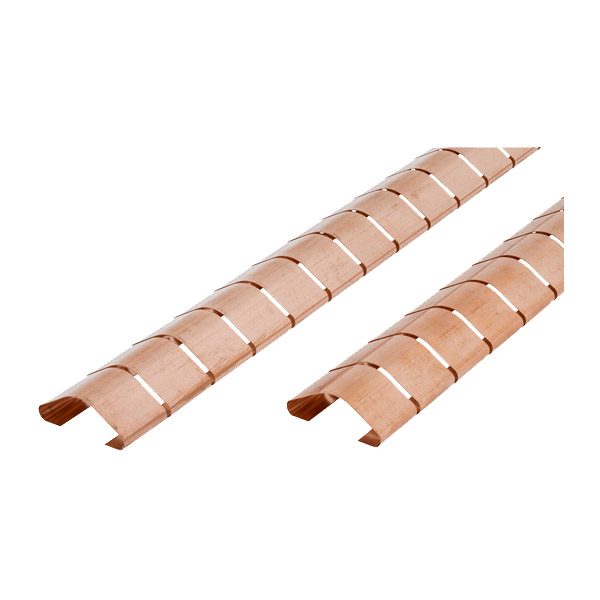

Our Snap-on Mount fingerstock using single or double fingers are ideal for applications such as sliding drawers, cabinet doors, rack-mounted assemblies and covers. They perform well in bi-directional applications and the snap-on capability makes them easy to install.

<< Back to Fingerstock

Standard Products

[list_icons][list icon=”chevron-right”]

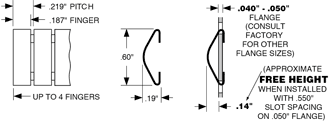

5220-02C32-BC | SYMMETRICAL

Gap Range up to .06″

Compression Force 25% Compression (0.053″) 50% Compression (0.035″)
Standard Style 2.7 lbs/ft 14 lbs/ft
TF Style (Low Compression) 2.5 lbs/ft 6.5 lbs/ft

Application Data

snap-on_track_chart

Legend

Only available in Beryllium Copper
*Add TF for low compression force style at the end of part #

Note: *Actual length determined by finger pattern.

Consult factory for the availability of longer lengths.
[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

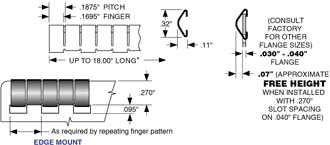

5220-03C32-BC | SYMMETRICAL

Gap Range up to .06″

Compression Force 25% Compression (0.053″) 50% Compression (0.035″)
Standard Style 4.1 lbs/ft 14 lbs/ft
TF Style (Low Compression) 1.1 lbs/ft 1.3 lbs/ft

Application Data

snap-on_track_chart_05

Legend

Only available in Beryllium Copper
*Add TF for low compression force style at the end of part #

Note*Actual length determined by finger pattern.

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5220-05D37-BC | SYMMETRICAL

Gap Range up to .075″

Standard

Application Data

snap-on_track_chart_03

Legend

Only available in Beryllium Copper
Notes:

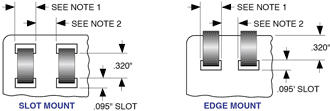

1. Length of slot as required by number of fingers.
2. Spacing determined by attenuation requirements.

snap-on_track_chart_08

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5220-06D37-BC | SYMMETRICAL

Gap Range up to .075″

Compression Force 25% Compression (0.068″) 50% Compression (0.045″)
Standard Style 1.3 lbs/ft 6.9 lbs/ft

Application Data

snap-on_track_chart

Legend

Only available in Beryllium Copper
Note: *Actual length determined by finger pattern.

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5220-07D37-BC | SYMMETRICAL

Gap Range up to .075″

Compression Force 25% Compression (0.068″) 50% Compression (0.045″)
Standard Style 1.5 lbs/ft 4.1 lbs/ft

Application Data

snap-on_track_chart_01

Legend

Only available in Beryllium Copper
Note: *Actual length determined by finger pattern.

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5220-08G60-BC | SYMMETRICAL

Gap Range up to .113″

Standard
“TF” Style

snap-on_track_chart_07

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

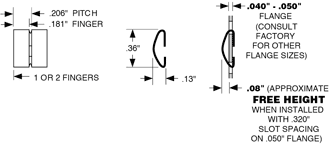

5220-13I36-BC | SOFT NO-SNAG FINGERS

Gap Range up to .068″

Standard

Application Data

 snap-on_track_chart_09

Legend

Only available in Beryllium Copper
Note:
1. Length of slot as required by number of fingers.
2. Spacing determined by attenuation requirements.

snap-on_track_chart_08
