Fingerstock Special Mounting

Series No. 5250

Special Mounting shielding strips can be installed by spot welding or soldering. Rivets can be used for the Strip mount 10S37 and 11S50 profiles and conductive pressure sensitive adhesives are available. Consult the factory.

<< Back to Fingerstock

Standard Products

[list_icons][list icon=”chevron-right”]

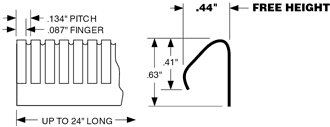

5250-01R60-BC | REVERSE BEND SPHERICAL

Compression Force Options 25% Compression (0.675″) 50% Compression (0.045″)
Standard Style 7 lbs/ft 10 lbs/ft

special_mounting_chart

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

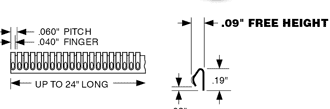

5250-02R75-BC | REVERSE BEND SPHERICAL

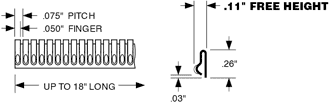

special_mounting_chart_01

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

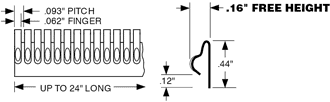

5250-03R93-BC | REVERSE BEND SPHERICAL

Compression Force Options 25% Compression (0.120″) 50% Compression (0.080″)
Standard Style 15 lbs/ft 47 lbs/ft

special_mounting_chart_02

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

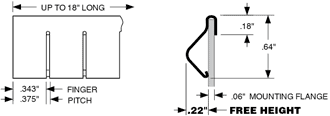

5250-04R60-BC | REVERSE BEND CONTACTS

Compression Force Options 25% Compression (0.053″) 50% Compression (0.035″)
Standard Style 18 lbs/ft 41 lbs/ft

special_mounting_chart_03

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5250-09R34-BC-YYY* | REVERSE BEND CONTACTS

Compression Force Options 25% Compression (0.150″) 50% Compression (0.100″)
Standard Style 18 lbs/ft 160 lbs/ft
TF Style (Low Compression) 7 lbs/ft 27 lbs/ft

special_mounting_chart_04

Legend

Only available in Beryllium Copper
*Add TF for low compression force style at the end of part #

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5250-10R87 | BC REVERSE BEND CONTACTS

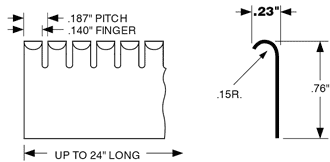

special_mounting_chart_05

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5250-12R34-BC | REVERSE BEND CONTACTS

Compression Force Options 25% Compression (0.330″) 50% Compression (0.220″)
Standard Style 16 lbs/ft 46 lbs/ft

special_mounting_chart_06

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

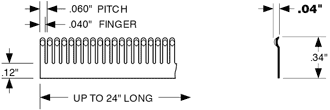

5250-20E70-BC | SOFT NO-SNAG FINGERS

Compression Force Options 25% Compression (0.165″) 50% Compression (0.110″)
Standard Style 18 lbs/ft 36 lbs/ft

special_mounting_chart_07

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5250-01S60 | BC SPHERICAL RADIUS

special_mounting_chart_08

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5250-03S75 | BC SPHERICAL RADIUS

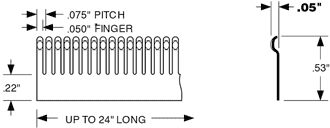

special_mounting_chart_09

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

5250-09S37 | BC CYLINDRICAL RADIUS

Compression Force Options 25% Compression (0.165″) 50% Compression (0.110″)
Standard Style 18 lbs/ft 48 lbs/ft

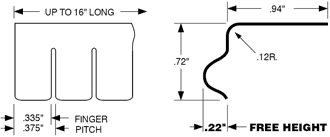

special_mounting_chart_10

Legend

Only available in Beryllium Copper

[/list] [/list_icons]
