Fingerstock Track Mounting

Series No. 5200 / 5210

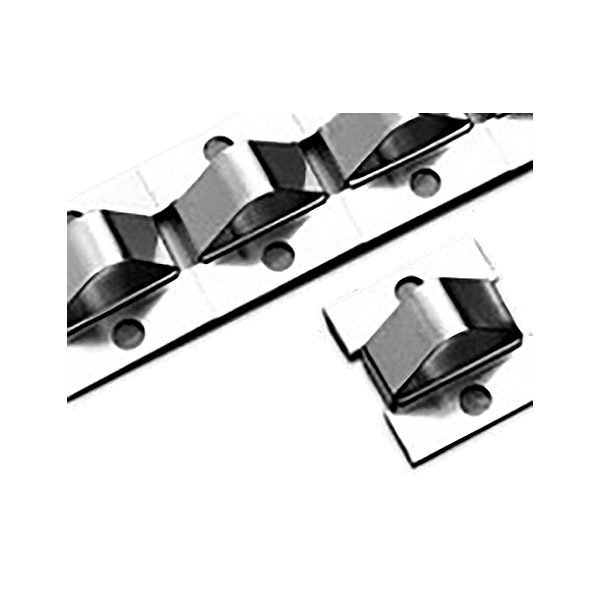

Track mounted symmetrical fingers provide a durable shielding solution for applications requiring bi-directional motion, such as drawers and plug-in modules.

<< Back to Fingerstock

Standard Products

[list_icons][list icon=”chevron-right”]fingerstock emi gaskets are made of Beryllium Copper and are ideal for repeated opening and closing applications where high attenuation performance and mechanical strength is required

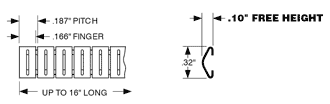

5200-06D37-BC | OMNI



Compression Force Options 25% Compression (0.098″) 50% Compression (0.065″)
Standard Style .2 lbs 4 lbs



fingerstock emi gaskets are made of Beryllium Copper and are ideal for repeated opening and closing applications where high attenuation performance and mechanical strength is required

Legend

Only Available in Beryllium Copper
Mounting Pad Material: Brass
Finish: Bright
Other finishes are also available.

[/list] [/list_icons]

5210 Series Track Mounting

Track mounted symmetrical fingers provide a durable shielding solution for applications requiring bi-directional motion, such as drawers and plug-in modules.

[list_icons][list icon=”chevron-right”]

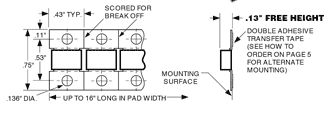

5210-01A32-BC | SYMMETRICAL

Compression Force Options 25% Compression (0.075″) 50% Compression (0.050″)
Standard Style 9.1 lbs/ft 18.1 lbs/ft



fingerstock emi gaskets are made of Beryllium Copper and are ideal for repeated opening and closing applications where high attenuation performance and mechanical strength is required

Legend

Only available in Beryllium Copper
Note: For use with Track TR52.

Consult factory for the availability of longer lengths.
[/list] [/list_icons]
[list_icons][list icon=”chevron-right”]

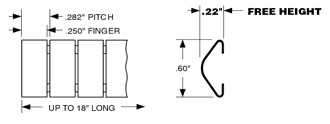

5210-01D60-BC | SYMMETRICAL

Compression Force Options 25% Compression (0.165″) 50% Compression (0.110″)
Standard Style 11 lbs/ft 27 lbs/ft
TF Style (Low Compression) 4.0 lbs/ft 10 lbs/ft



fingerstock emi gaskets are made of Beryllium Copper and are ideal for repeated opening and closing applications where high attenuation performance and mechanical strength is required

Legend

Only available in Beryllium Copper
*Add TF for low compression force style at the end of part #

[/list] [/list_icons]
