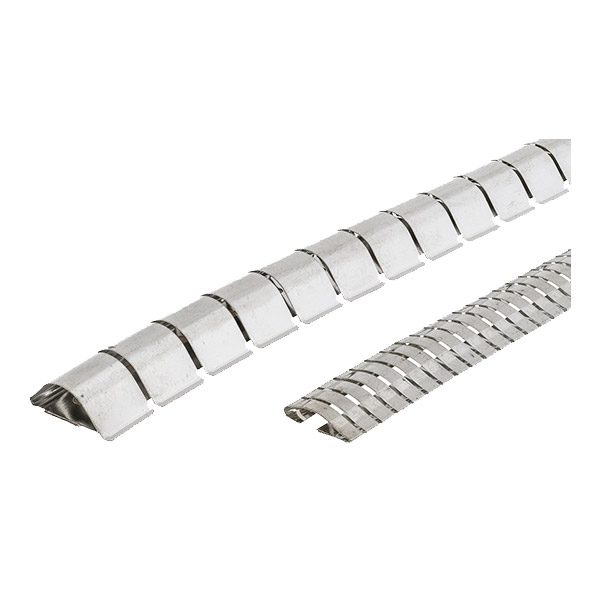

Fingerstock Stick-on Mounting

Series No. 5230

Pressure Sensitive Adhesive Mounting provides double-sided pressure sensitive transfer tape for a fast, reliable installation. Our 3M transfer tape or equivalent may be used at ambient temperatures from -67°F to 300°F. Apply only on a clean, oil-free surface, and allow a 24-hour cure time. Consult the factory for other adhesives and extended liner options.

<< Back to Fingerstock

Standard Products

5230-01C35-BC | SOFT NO-SNAG FINGERS

Compression Force Options 25% Compression (0.083″) 50% Compression (0.055″)
Standard Style 25 lbs/ft 89 lbs/ft
TF Style (Low Compression) 6 lbs/ft 23 lbs/ft

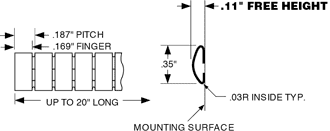

stick-on_track_chart

Legend

Only available in Beryllium Copper
Note: Also available with optional double adhesive transfer tape.
*Add TF for low compression force style at the end of part #



5230-02B28-BC | LOW PROFILE NO-SNAG

Compression Force Options 25% Compression (0.045″) 50% Compression (0.030″)
Standard Style 5.5 lbs/ft 20.4 lbs/ft
stick-on_track_chart_01

Legend

Only available in Beryllium Copper



5230-03B32-BC | LOW PROFILE NO-SNAG

Compression Force Options 25% Compression (0.060″) 50% Compression (0.040″)
Standard Style 6.8 lbs/ft 17 lbs/ft

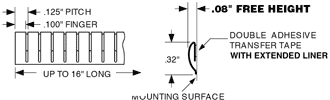

stick-on_track_chart_02

Legend

Only available in Beryllium Copper



5230-07B45-XX* | HOOK & STICK-ON LOW PROFILE NO-SNAG

Compression Force Options 25% Compression (0.045″) 50% Compression (0.030″)
Standard Style 10 lbs/ft 19 lbs/ft
TF Style (Low Compression) 6.4 lbs/ft 17 lbs/ft
stick-on_track_chart_03

Legend

*Replace XX with:
SS for Stainless Steel
BC for Beryllium Copper
*Add TF for low compression force style at the end of part #



5230-08B60-XX* | HOOK & STICK-ON LOW PROFILE NO-SNAG

Compression Force Options 25% Compression (0.068″) 50% Compression (0.045″)
Standard Style 8.7 lbs/ft 17.3 lbs/ft
TF Style (Low Compression) 5.8 lbs/ft 9.0 lbs/ft

stick-on_track_chart_04

Legend

*Replace XX with:
SS for Stainless Steel
BC for Beryllium Copper
*Add TF for low compression force style at the end of part #



5230-09B60-BC | HOOK & STICK-ON LOW PROFILE NO-SNAG

Compression Force Options 25% Compression (0.105″) 50% Compression (0.070″)
Standard Style 19 lbs/ft 35 lbs/ft
TF Style (Low Compression) 6.8 lbs/ft 14 lbs/ft
stick-on_track_chart_05

Legend

Only available in Beryllium Copper
*Add TF for low compression force style at the end of part #



5230-10J21-BC | SOFT NO-SNAG FINGERS

Compression Force Options 25% Compression (0.060″) 50% Compression (0.040″)
Standard Style 11 lbs/ft 34 lbs/ft

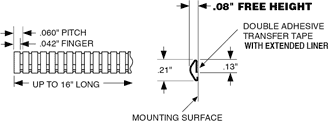

stick-on_track_chart_06

Legend

Only available in Beryllium Copper



5230-11C21-BC | SOFT NO-SNAG FINGERS

Compression Force Options 25% Compression (0.090″) 50% Compression (0.060″)
Standard Style 12 lbs/ft 24 lbs/ft
stick-on_track_chart_07

Legend

Only available in Beryllium Copper



5230-12C28-BC | SOFT FINGERS

Compression Force Options 25% Compression (0.083″) 50% Compression (0.055″)
Standard Style 15 lbs/ft 32 lbs/ft

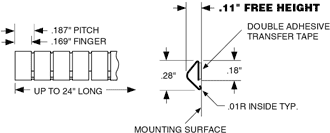

stick-on_track_chart_08

Legend

Only available in Beryllium Copper
Note: Also available in 25 ft. rolls.



5230-13C32-BC | SOFT NO-SNAG FINGERS

Compression Force Options 25% Compression (0.083″) 50% Compression (0.055″)
Standard Style 14 lbs/ft 26 lbs/ft

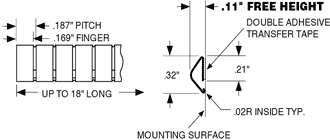

stick-on_track_chart_09

Legend

Only available in Beryllium Copper



5230-14D37-BC | SOFT NO-SNAG FINGERS

Compression Force Options 25% Compression (0.098″) 50% Compression (0.065″)
Standard Style 10 lbs/ft 21 lbs/ft
stick-on_track_chart_10

Legend

Only available in Beryllium Copper



5230-15D50-BC | SOFT NO-SNAG FINGERS

Compression Force 25% Compression (0.098″) 50% Compression (0.065″)
Standard Style 10 lbs/ft 21 lbs/ft

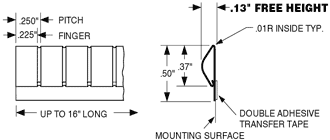

stick-on_track_chart_11

Legend

Only available in Beryllium Copper



5230-16E60-BC | SOFT NO-SNAG FINGERS

Compression Force Options 25% Compression (0.165″) 50% Compression (0.110″)
Standard Style 10 lbs/ft 20 lbs/ft
TF Style (Low Compression) 2.0 lbs/ft 7.2 lbs/ft
stick-on_track_chart_12

Legend

Only available in Beryllium Copper
*Add TF for low compression force style at the end of part #



5230-17E80-BC | SOFT NO-SNAG FINGERS

Compression Force Options 25% Compression (0.240″) 50% Compression (0.160″)
Standard Style 7 lbs/ft 17 lbs/ft
stick-on_track_chart_13

Legend

Only available in Beryllium Copper



5230-18F110-BC | SOFT NO-SNAG FINGERS

Compression Force Options 25% Compression (0.300″) 50% Compression (0.200″)
Standard Style 12 lbs/ft 24 lbs/ft

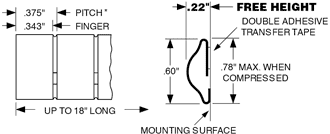

stick-on_track_chart_14

Legend

Only available in Beryllium Copper
Note: Up to 18″ long.



5230-21E60-BC | NO-SNAG FINGERS

Compression Force Options 25% Compression (0.165″) 50% Compression (0.110″)
Standard Style 13 lbs/ft 32 lbs/ft

stick-on_track_chart_15

Legend

Only available in Beryllium Copper
Note: Also available in .187″ Pitch.

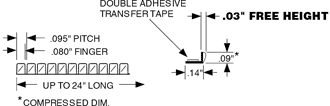

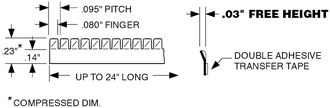

5230-24T95-XX* | TWISTED CONTACTS

Compression Force Options 25% Compression (0.023″) 50% Compression (0.015″)
Standard Style 5.8 lbs/ft 35 lbs/ft
TF Style (Low Compression) 4.9 lbs/ft 19 lbs/ft

stick-on_track_chart_16

Legend

*Replace XX with:
SS for Stainless Steel
BC for Beryllium Copper
*Add TF for low compression force style at the end of part #
Also available in 25 ft. rolls



5230-25-95T90-XX* | TWISTED CONTACTS

Compression Force Options 25% Compression (0.023″) 50% Compression (0.015″)
Standard Style 12 lbs/ft 51 lbs/ft
TF Style (Low Compression) 2.5 lbs/ft 10 lbs/ft

stick-on_track_chart_17

Legend

*Replace XX with:
SS for Stainless Steel
BC for Beryllium Copper
*Add TF for low compression force style at the end of part #



5230-26-165T-XX* | TWISTED CONTACTS

Compression Force Options 25% Compression (0.053″) 50% Compression (0.035″)
Standard Style 18 lbs/ft 36 lbs/ft
TF Style (Low Compression) 4.2 lbs/ft 11 lbs/ft

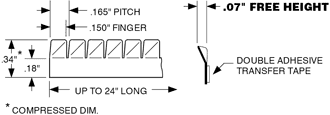

stick-on_track_chart_18

Legend

*Replace XX with:
SS for Stainless Steel
BC for Beryllium Copper
*Add TF for low compression force style at the end of part #

Also available in 25 ft. rolls



5230-27-165T-XX* | TWISTED CONTACTS

Compression Force Options 25% Compression (0.053″) 50% Compression (0.035″)
Standard Style 18 lbs/ft 36 lbs/ft
TF Style (Low Compression) 4.2 lbs/ft 11 lbs/ft

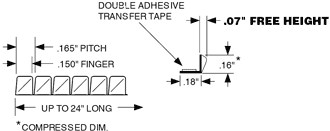

stick-on_track_chart_19

Legend

*Replace XX with:
SS for Stainless Steel
BC for Beryllium Copper
*Add TF for low compression force style at the end of part #
